Heating Jacket
Heating Jacket
The product received CE certification and UL certification and it used special materials for high-temperature flame
retardant is authenticated at home and abroad, and inside. There is an excellent product and can use for the various
devices safely.
Purpose of use
ㆍSemiconductor manufacturing equipment, PILOT PLANT heating and thermal insulation.
ㆍUse for dry etch of FAB Line, LP-CVD process, CVD process of LCD Line.
ㆍPump to Scrubber
ㆍChamber to Pump Line
ㆍVacuum Line
ㆍCVD Process Line
ㆍEtch Process Line
ㆍPoly Process Line
ㆍGas Delivery Line
ㆍExhaust Line
ㆍBake-out Chamber
ㆍValve, Pump, Vacuum Line, Pipe, Flange, Elbow heating and insulation of curved or irregular shaped parts.
ㆍUse to prevent of the melted material coagulation to the pipe, gas container and Cylinder N2 Gas Cylinder, Y-Cylinder.
ㆍ Use for "various sizes, various forms of" Flask, Beaker, tubes, quartz tube, chemical vessel heating.
ㆍUse for a constant viscosity heating the various resin materials.
ㆍPrevent of coagulation phenomenon after dissolving the metal material (gold, silver, zinc, copper or the like).
Specification
Name | Composition | Heat-resisting Temperature | Using Temperature |
---|---|---|---|
Outer covers, Inner covers | Silica Cloth Aluminium Foil Coating |
500℃ | 350℃ |
E-glass fiber Aluminium Foil Coating |
500℃ | 250℃ | |
E-glass fiber Teflon Coating |
450℃ | 250℃ | |
E-glass fiber Silicone Coating |
560℃ | 350℃ | |
PTEF |
300℃ | 260℃ | |
Silica Cloth |
900℃ | 650℃ | |
Silica Cloth High Temperature Cloth |
1650℃ | 800℃ | |
internal insulation | Lastan (4~15T) |
1000℃ | 850℃ |
Silica Wool (6~12T) |
900℃ | 800℃ | |
Ceramic Wool (5~50T) |
1000℃ | 850℃ | |
E-glass Wool (5~15T) |
500℃ | - | |
Heater and safety device | Heater (Japan Alliance) |
||
Nichrome Wire, Kanthal Wire, Glass Coating Nichrome Wire |
|||
Thermocouple (T/C), K-type, J-type, E-type, Pt100Ω-type |
|||
Equipped by capacity |
|||
Buzzer for temperature setting, reset switch |
|||
Overcurrent protection ELB |
|||
Operating voltage | AC 100VAC, AC220VAC, AC380VAC, AC480VAC |
||
Characteristic | Capacitance Tolerance ±10% |
||
nsulation resistance value over 1000Ω |
|||
Withstand voltage |
To improve the quality of the product, price, specifications and design are subject to change without notice.
Feature
ㆍTo consist of high-purity silica fibers (Silica Cloth) lighter products.
(Silica Cloth: 96% Sio2 high-purity silica fibers is flame retardant and flame retardant treated also it withstand high temperatures and low temperatures as well as a strong force material.)
ㆍExcellent thermal response, flexibility, adhesion
ㆍNo change in form at a high temperature.
ㆍThe external surface of the aluminum coating was preventing fine dust emission and absorption, appearance is wonderful.
ㆍThe heater (hot wire) has long life because made with strong kanthal, Nichrome wire column.
ㆍManufactured variety of shapes according to the heated object type, it can be installation to easy without interference.
ㆍCan be manufactured in a wide temperature range(20°C~ 700°C) as user's using situation.
ㆍManufactured by a various materials - silica Cloth, Teflon, Fiber Glass, silicon, Lastan.
ㆍT / C and Bimetal Thermostat Fuse Built-in (the seperate temperature controller necessary)
ㆍVariety of orders are possible, so you can be at the same time, each controlling multiple Heating Jacket in series or in parallel.
ㆍMust be used in conjunction with a separate thermostat.
(Mortality of the thermostat, GLTC-D, we recommend GLTC-DP.)
ㆍPrevent heat loss outside and reaches a desired temperature in a short time and maintain a constant temperature.
ㆍBy blocking the heat generated by the inner and outer Jacket easy to work, and to minimize the outside temperature was designed to avoid burns.
ㆍVariety of sizes, thickness, length and thickness can be made.
ㆍTo shorten the production time to complete the process was supplied in a short time.
ㆍThorough management and A / S after supply.
Heating Jacket Exploded view
Contractors
Applications
Cylinder Heating Jacket
Feature
ㆍTo consist of high-purity silica fibers (Silica Cloth) lighter products.
ㆍExcellent thermal response, flexibility, adhesion
ㆍNo change in form at a high temperature.(Silica Cloth, Teflon, FiberGlass, Silicon, Lastan)
ㆍLong life.
ㆍCan be manufactured in a wide temperature range and material/
ㆍT / C and Bimetal Thermostat Fuse Built-in (the seperate temperature controller necessary).
ㆍLasts after reaching the desired temperature in a short period of time.
Power Characteristics
Capacity Tolerance ±10%
Insulation resistance value over 1000Ω
Withstand voltage 1500V/min
Working Voltage
AC100VAC~440VAC,50/60Hz. Single-phase or Three phases.
Workable Temperature
10°C ~ Max 650°C
Outer covers | Silica cloth AL coating E-Glass fiber cloth Silica cloth teflon coating |
---|---|
Inner covers | Silica cloth high temperature cloth E-glass fiber cloth silicone coating |
Insulation | Ceramic Wool Lastan Glass Wool Super Wool |
Heater Element | KanThal wire Ni-Cr wire Silica coating wire |
Sensor | pt 100Ω type "K"(ca) type |
Velcro | Resistance to Flame or Flame Resistant Velcro |
Yarn | Non Flammable aramide yarn |
Jacket Thickness | 5t~50t |
* To improve the quality of the product, price, specifications and design are subject to change without notice.
Insulation Jacket
Purpose of use
Insulation jacket using for semiconductor manufacturing equipment, such as heating equipment
such as heating equipment or connections are various Pipe, tube, tank, Cylinder, aims to ensure physical and chemical containers are supplied without a cool down so smoothly Gas and solution heat insulation by not clot.
By Chamber or Chamber of pipe after the equipment used to maintain the Line temperature insulation and heat insulation prevents the worker burns. (Internal temperature is 300°C when the outside temperature below 50° C).
Using in advanced equipment FAB Line Dry Etch, mainly used by LP-CVD process and CVD process of LCD Line.
ㆍPump to Scrubber
ㆍChamber to Pump Line
ㆍVacuum Line
ㆍCVD Process Line
ㆍEtch Process Line
ㆍPoly Process Line
ㆍGas Delivery Line
ㆍExhaust Line
ㆍBake-out Chamber
ㆍChamber, Valve, Pump, Vacuum Line, Pipe, Flange,insulation of curved or irregular shaped parts.
ㆍLCD Camber and external insulation
Feature
ㆍEasy to install.
ㆍNo change in form at a high temperature.
ㆍUsed harmless fiber and materials(Ceramic wool, Lastan, Silica cloth, E-glass, Silica Teflon Coating).
ㆍVariety thickness available. (2T, 5T, 8T, 10T, 12T, 15T, 20T, 25T, 50T)
ㆍ Excellent thermal insulation.
Specifications
ㆍMain body : Silica Cloth, AL Coating, Fiber Glass Cloth, E-glass, Silicone Coating
ㆍSilicon Rubber
ㆍInsulation material : Ceramic Wool(Fiber Glass). Lastan, Silicone
ㆍInstallation method : Velcro, hook, belt
Feature of "Sunsil"
Asbestos (Asbestors) is Sio2 a purity of about 96% Silica fiber as a substitute.
Long-term continuous use temperature of 800°C, a heat-resistant material that can withstand momentary temperature to 1600°C.
Insulation materials are safe and harmless to the human body. Chemical resistance and electrical insulation.
Feature of "Lastan"
Lastan will not burning or melting in the air because of it processed with special acrylic fibers.
No particulate matter or skin irritation such as asbestos or glass fibers.
Soft and lightweight products it passed from the Japanese Jis Al323 standards.
And provides superior performance in high temperature and it constructed with heat or flame protection fiber.
Applicationcase
Silicone Rubber Heater
Silicone Rubber Heater
ㆍSilicone Rubber Heater is using for the equipment parts production in almost of manufacturing company.
ㆍPilot Plant and semiconductor manufacturing equipment such as heating and thermal insulation.
ㆍAnd mostly used in Dry Etch, LP-CVD process and the CVD process of the LCD Line FAB Line.
ㆍPump to Scrubber
ㆍChamber to Pump Line
ㆍVacuum Line
ㆍCVD Process Line
ㆍEtch Process Line
ㆍPoly Process Line
ㆍGas Delivery Line
ㆍExhaust Line
ㆍBake-Out Chamber etc.
ㆍUsed in insulation and heating of Valve, Pump, Vacuum Line, Pipe, Flange, Elbow, such as the shape of uneven or curved sections.
ㆍUsed for heating of various Pipe, drums, paint bucket.
ㆍApplicable metals : aluminum, stainless steel, brass, copper etc.
Feature
ㆍAdhere to the heat object at any way flexibly.
ㆍExcellent heat response because the thin sheet.
ㆍCan Used in cleanrooms because there is no dust or odor.
ㆍMainly used by under 200 ° C and so is semi-permanent.
ㆍDesigned to be constant the temperature distribution of the heating surfaces.
ㆍManufactured to the exact temperature that meets your needs because wattage choice in proportion by using temperature.
CAUTION!!
ㆍThermo Couple Connector and Power Connector is not included.
ㆍConsult in accordance with the temperature Controller configuration.
ㆍPlease purchase after identified through consultation after check equipment capacity of the temperature, voltage, etc.

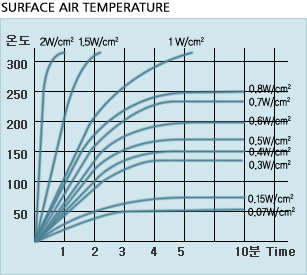

Specifications
Heater resistant temperature
Continuous use temperature | 20°C |
---|---|
Maximum temperature | 250°C |
Power characteristics
Capacity tolerance | ±10% |
---|---|
Insulation resistance | 1000MΩ over |
Withstand voltage | 1500V/1min |
Measurements
Maximum | 400mm×3000mm |
---|---|
Minimum | 25mm×50mm |
Thickness | 1.5mm |
Insulator thickness(sponge attached style) | 5mm ~ 20mm |
* To improve the quality of the product, price, specifications and design are subject to change without notice.

Applicationcase
